Zebra ZT61A Series · 600 dpi Micro Label Printer

Print labels as small as 3mm.
Without compromise.

The Zebra ZT610 600dpi Micro Label Printer delivers industrial-grade precision for electronics, manufacturing, and high-density labelling applications. Built for 24/7 operation — engineered to last.

Shop both models → Watch it in action
600dpiPrint resolution
3mmMinimum label size
14 ipsMax print speed
24/7All-metal durability
Fast UK despatch
Genuine Zebra product
Expert pre-sales support
Authorised UK reseller
Zebra OneCare support available
Watch it in action
See the ZT610 micro label printer

Watch how the Zebra ZT610 delivers exceptional precision for demanding industrial labelling environments — from setup to high-speed production.

Product overview
Zebra ZT610 600dpi micro label printer

Industrial-grade all-metal construction with a 4.3" full-colour touchscreen. Engineered for precision, built for the long haul.

50% more precise registration than standard industrial printers — enabling consistently legible barcodes and text on labels as small as 3mm. Perfect for circuit boards, chips, and miniature components where every micron counts.

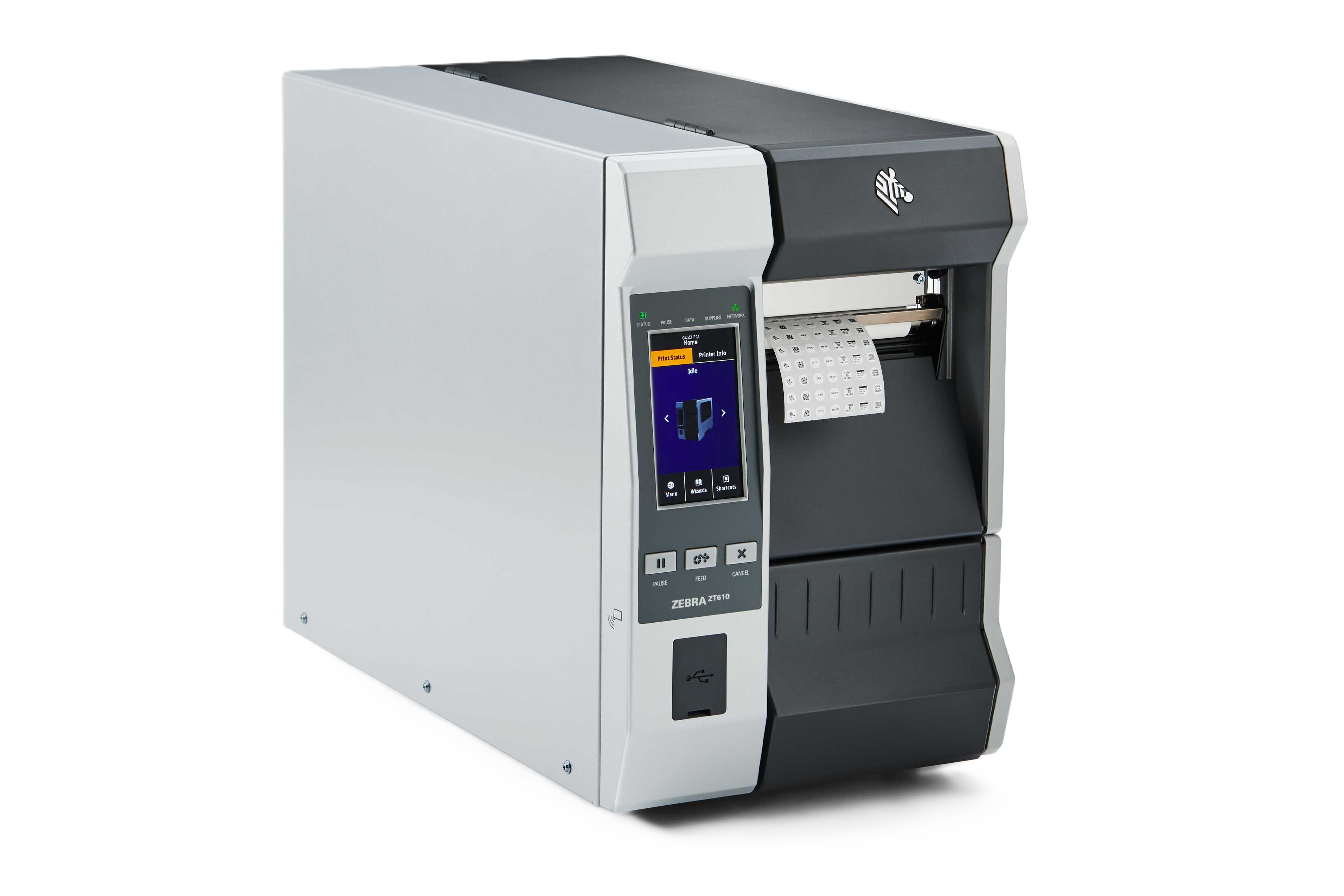

Zebra ZT610 industrial printer

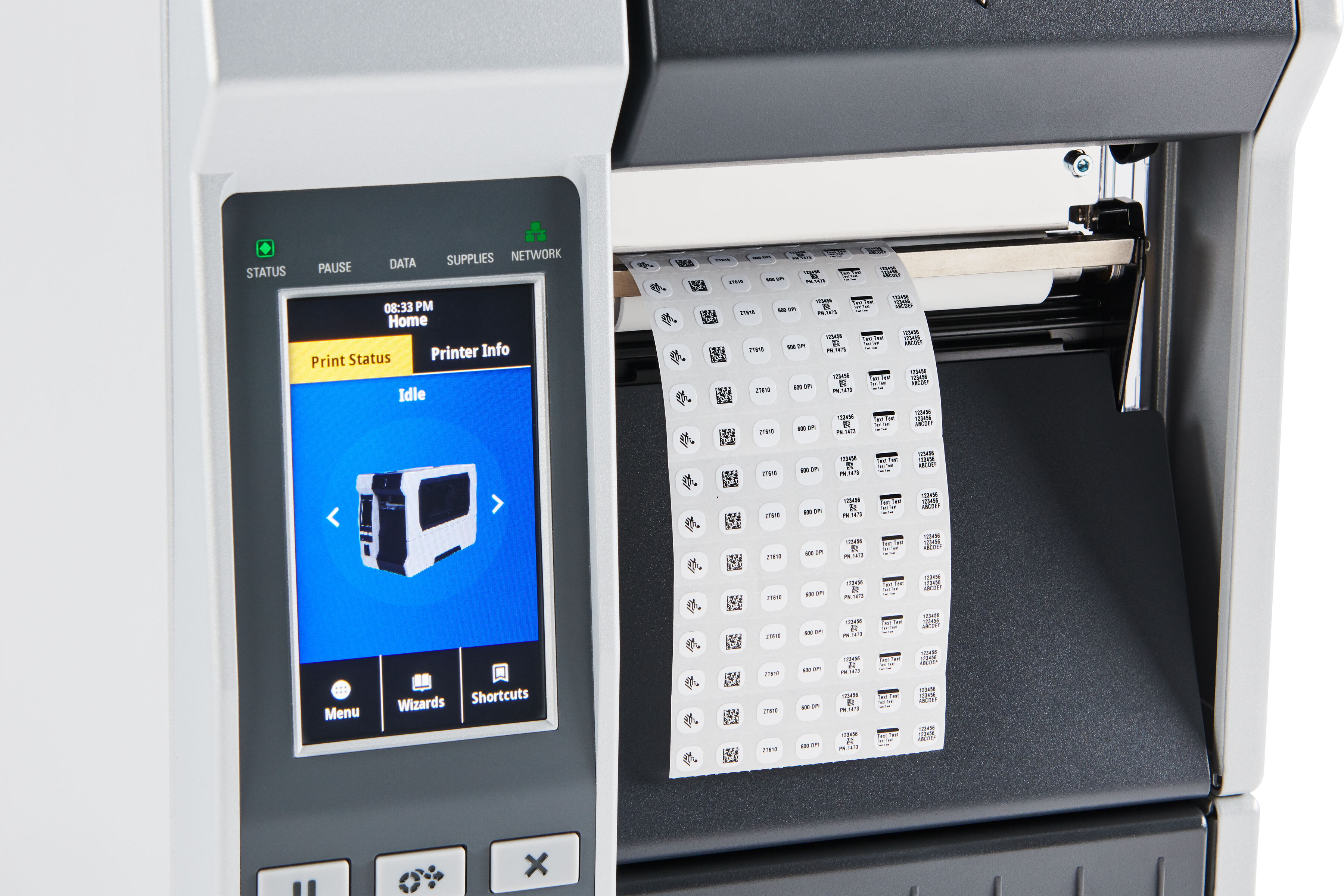

Zebra ZT610 micro label detail

Replace image URLs above with your own hosted product photos for maximum reliability.

Key features
Built for precision. Built to last.

Every feature of the ZT610 is engineered around one goal: keeping your operation running with zero compromise on label quality.

600dpi micro printing

Print legible labels as small as 3mm with up to 50% more precise registration than standard industrial printers. Ideal for PCBs and miniature components.

All-metal construction

Purpose-built for 24/7 industrial environments. Resists extreme temperatures, dust, and moisture with an all-metal frame that virtually eliminates downtime.

14 ips print speed

Up to 14 inches per second with a 104mm max print width — delivering high-volume output and micro-label precision simultaneously.

4.3" colour touchscreen

Bright, intuitive display turns red when errors occur — so issues are spotted at a glance. Reduces training requirements and support calls.

Multi-mode connectivity

USB 2.0, RS-232 Serial, Gigabit Ethernet, and Bluetooth 4.1 standard. Two open expansion slots for 802.11ac Wi-Fi and other modules.

Zebra Link-OS & DNA

Enterprise printer OS with advanced connectivity, remote device management, privacy controls, and full integration with automated labelling systems.

Choose your model
Two configurations. One precision platform.

Both models share the same 600dpi micro label print engine with identical connectivity. The only difference is how they handle finished labels.

ZT61A46-T0E0100Z
ZT610 Micro Label — Tear

The standard configuration for most applications. Manual tear bar for quick, clean label removal in high-throughput environments.

  • 4" / 600dpi micro label printing
  • Tear bar media handling
  • Serial, USB, Gigabit Ethernet
  • Bluetooth 4.1 + USB Host
  • Euro & UK power cord included
  • Colour touch display, ZPL
Add to cart Request a quote
Recommended for automation
ZT61A46-T2E0100Z
ZT610 Micro Label — Rewind

The premium configuration for automated lines. The built-in rewind module feeds labels cleanly into applicators and robotic systems.

  • 4" / 600dpi micro label printing
  • Internal label rewind module
  • Serial, USB, Gigabit Ethernet
  • Bluetooth 4.1 + USB Host
  • Euro & UK power cord included
  • Colour touch display, ZPL
Add to cart Request a quote
Full specifications
Technical specifications

Everything your technical team needs to evaluate the ZT610 for your environment.

Print methodThermal transfer / Direct thermal
Print resolution600 dpi (24 dots/mm)
Max print width4.09" (104mm)
Max print speed14 ips (356mm/sec)
Minimum label size3mm
Barcode symbologiesAll major 1D & 2D including QR, DataMatrix, PDF417, Aztec, Code 128, EAN, UPC
Printer languageZPL / ZPL II, XML-enabled printing
Memory1GB RAM / 2GB Flash
Label width (with liner)1.00" (25.4mm) to 4.50" (114mm)
Max media roll size8" (203mm) O.D. on 3" (76mm) core
Media thickness0.058mm to 0.25mm
Media types supportedContinuous, die-cut, notch, black-mark
Media sensorsDual transmissive and reflective
Tear model handlingManual tear bar
Rewind model handlingInternal label rewind module
USBUSB 2.0 device + USB Host port
SerialRS-232 Serial
EthernetGigabit Ethernet (10/100/1000)
BluetoothBluetooth 4.1
Optional wireless802.11ac Wi-Fi (via expansion slot)
Expansion slotsTwo open communication slots
Software platformZebra Link-OS™ / Zebra DNA™
PowerEuro & UK cord, 90–265VAC auto-detect
Dimensions505 x 268 x 396mm (19.9 x 10.6 x 15.6")
Weight22.7kg (50lbs)
ConstructionAll-metal frame with bi-fold cover and clear viewing window
Display4.3" full-colour touchscreen (turns red on error)
Energy ratingENERGY STAR qualified
CertificationsCE, FCC-B, IEC 60950, EN 55022, EN 55024
WarrantyStandard Zebra manufacturer warranty (Zebra OneCare plans available)
Industry applications
Who uses the ZT610?

Purpose-built for industries where space is at a premium and accuracy is non-negotiable.

⚡ PCB & electronics manufacturing ? Pharmaceutical traceability ? Medical device labelling ✈️ Aerospace part marking ? Laboratory specimen ID ? Automated labelling systems ? Jewellery & small retail ? High-density asset tracking
⚡

Electronics

PCB labels, chip marking, SMD component identification

?

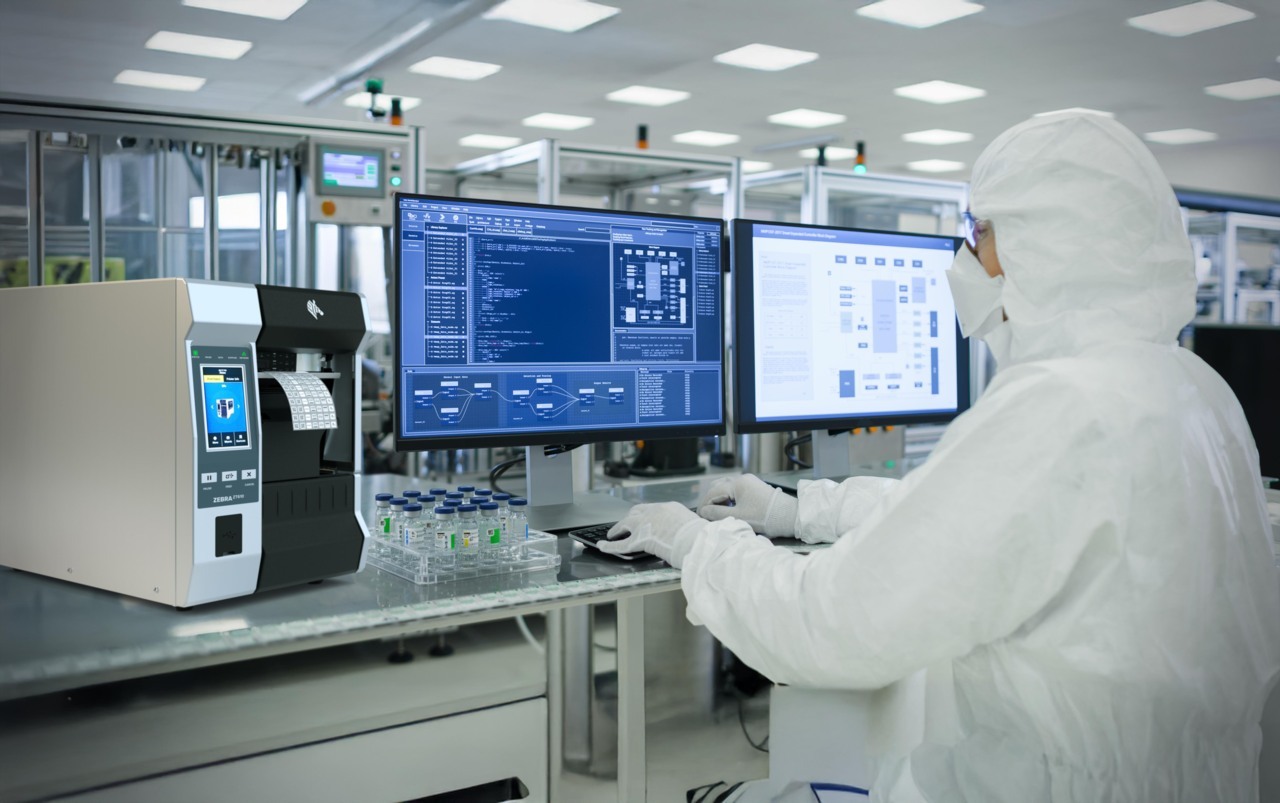

Healthcare & Pharma

Specimen labels, vial tags, device traceability and compliance

?

Manufacturing

Part marking, work-in-process labels, serialisation

?

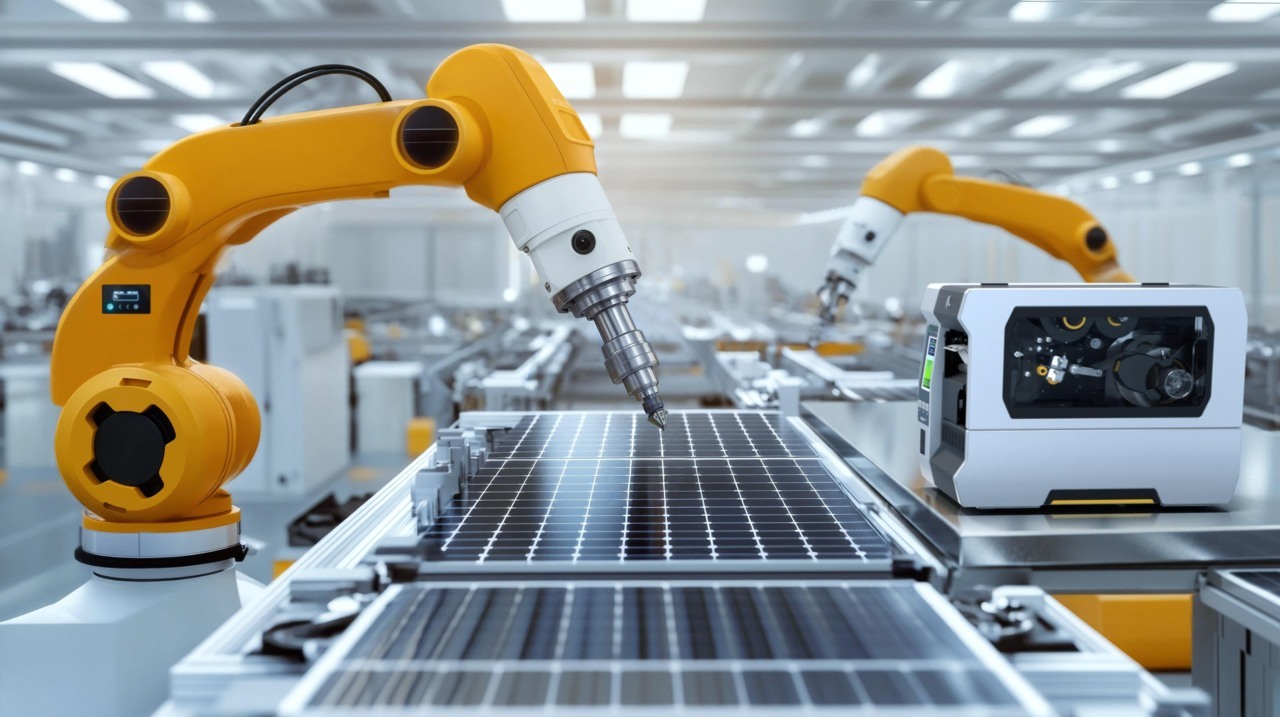

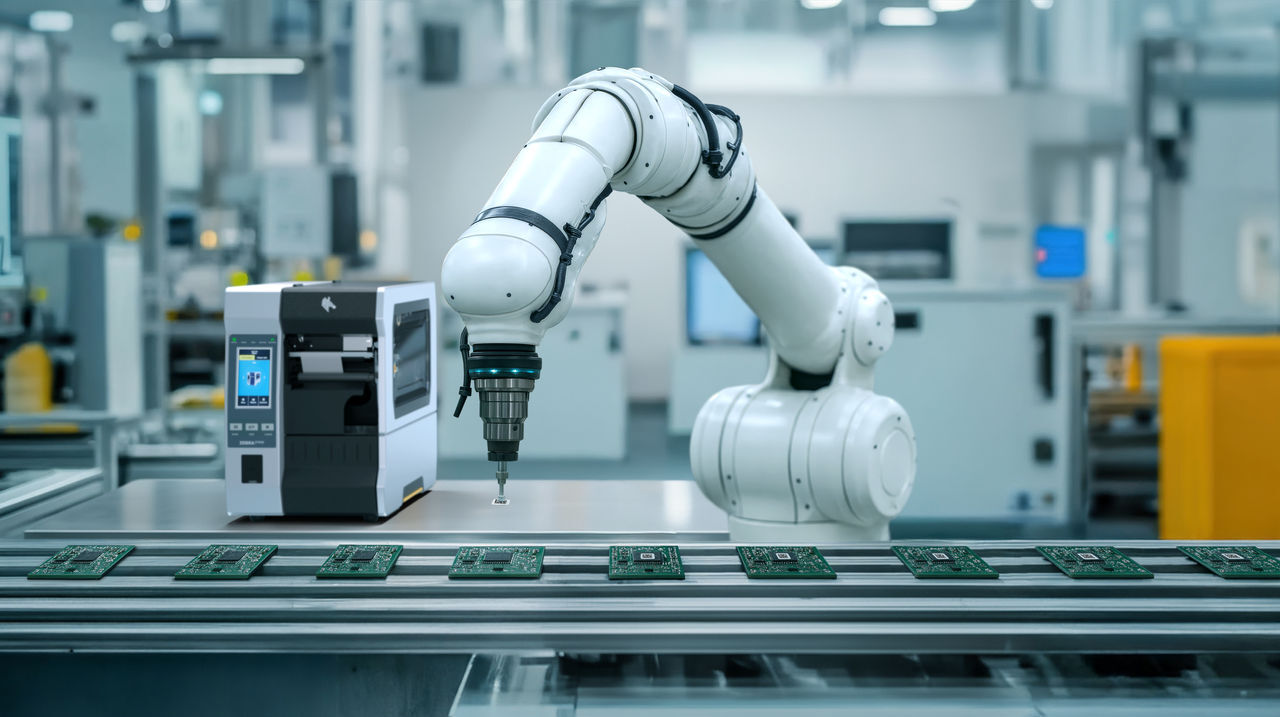

Automation

Robotic applicators, inline printing, conveyor integration
